Rotary vane low-pressure compressor, 100m³/h, oil-free, air-cooled,KDE100

Brand Name : EURO

Model Number : KDE100

Place of Origin : CHINA

MOQ : 1

Price : Negotation

Payment Terms : T/T

Delivery Time : 5-8 working days after get the payment

Packaging Details : plywooden box

Model : Oil Free Rotary Vane Low Pressure Compressor

Type : KDE100

Motor Power : 5.5/6.6kW

Features : Oil Free, Compact Design, High Efficiency

Warranty : 1 Year

Power : 50/60 Hz

Displacement : 100/120 m³/h

Three-phases : 230/400V ±10%

Pressure : +1500mbar

Noise Level : 76dB

Weight : 127kgs

Contact Now

Rotary vane low-pressure compressor,100m³/h, oil-free, air-cooled,KDE100


Description

Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.

Our dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.


​Technical Data

TYPE AIR FLOW(m³/h) MOTOR POWER(kW) MOTOR VOLTAGE (V) Motor Speed(rpm)

Pressure

(mbar)

Noise

(dB)

 Weight (kgs)
50HZ 60HZ 50HZ 60HZ 50HZ/60HZ 50HZ 60HZ
KDE60 60 72 3 3.6 230/400V±10% 1450 1740 +1500 72 69
KDE80 80 96 4 4.8 230/400V±10% 1450 1740 +1500 74 77
KDE100 100 120 5.5 6.6 230/400V±10% 1450 1740 +1500 76 127
KDE140 140 168 7.5 9 230/400V±10% 1450 1740 +1500 82 146

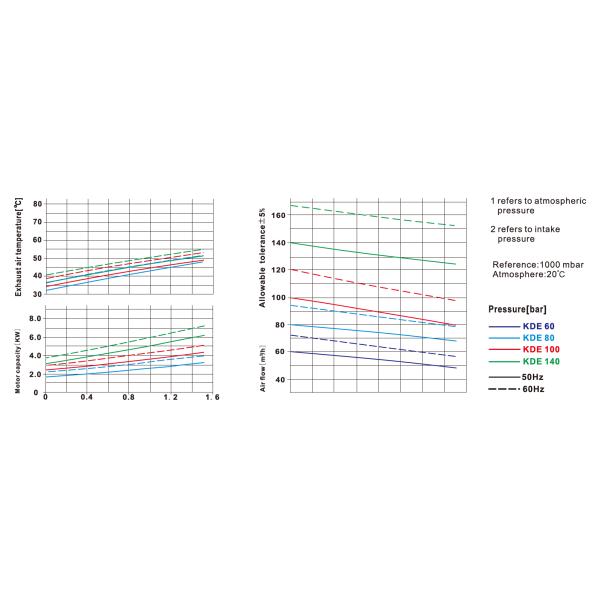

Performance Curve


Rotary vane low-pressure compressor, 100m³/h, oil-free, air-cooled,KDE100
Rotary vane low-pressure compressor, 100m³/h, oil-free, air-cooled,KDE100

Dimensions


Rotary vane low-pressure compressor, 100m³/h, oil-free, air-cooled,KDE100


Rotary vane low-pressure compressor, 100m³/h, oil-free, air-cooled,KDE100




Feedback from clients

https://youtu.be/3ecsqle7bs4




Highlights of DE/KDE series:

  • Low operation and maintenance costs
  • Cool operation
  • Quiet operation-no silence enclosures necessary
  • No cycling times
  • Straightforward construction for fast and easy service on-site to reduce downtime


Applications

  • Pneumatic conveying
  • Printing industry
  • Food technology

SINO-GERMANY TECHNICAL COOPERATION
