40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

Product Categories
SUZHOU KACO VACUUM EQUIPMENT CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

Brand Name : EURO

Model Number : DE40K

Place of Origin : CHINA

MOQ : 1

Price : Negotation

Payment Terms : T/T

Delivery Time : 5-8 working days after get the payment

Packaging Details : plywooden box

Model : Oil Free Rotary Vane Vacuum Pump

Type : DE40K

Motor Power : 1.85/2.2kW

Features : Oil Free, Compact Design, High Efficiency

Warranty : 1 Year

Power : 50/60 Hz

Displacement : 40/48 m³/h

Single Phase : 230V±10%

Three-phases : 190-255V/330-440V±10%

Pressure : +1000mbar

Noise Level : 67dB

Weight : 46kgs

Contact Now

40 m³/h dry-running low-pressure compressor,oil-free, air-cooled,DE40K


Description

Our DE and KDE series are the counterparts to VE/KVE models,dry-running compression pumps.
The range here starts with an air displacement capability of 10 m³/h for our smallest compressors and reaches up to 140m³/h.

Our Eurovac dry-running rotary vane compressors are robust, durable, and ideal for medium-pressure applications. They are designed for longevity and low maintenance.


​Technical Data

TYPE

AIR FLOW
(m³/h)

 MOTOR POWER(kW) MOTOR VOLTAGE(V) (3P) MOTOR VOLTAGE(V) (1P)

Speed
(rpm)

Pressure
(mbar)

Noise
(dB)

 Weight (kgs)
50HZ 60HZ 50HZ 60HZ 50HZ 60HZ 50HZ/60HZ 50HZ 60HZ
DE10 10 12 0.37 0.44

170-260V
/300-450V

202-300V
/350-520V

 230V±10% 1420 1700 +1000 62 16
DE16K 16K 19.2 0.75 0.9

170-260V
/300-450V

202-300V
/350-520V

 230V±10% 1420 1700 +1000 64 23.5
DE25K 25 30 1.25 1.5

190-255V
/330-440V

190-290V
/330-500V

 230V±10% 1420 1700 +1000 65 36.5
DE40K 40 48 1.85 2.2

190-255V
/330-440V

190-290V
/330-500V

 230V±10% 1420 1700 +1000 67 46



Performance Curve


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K
40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K

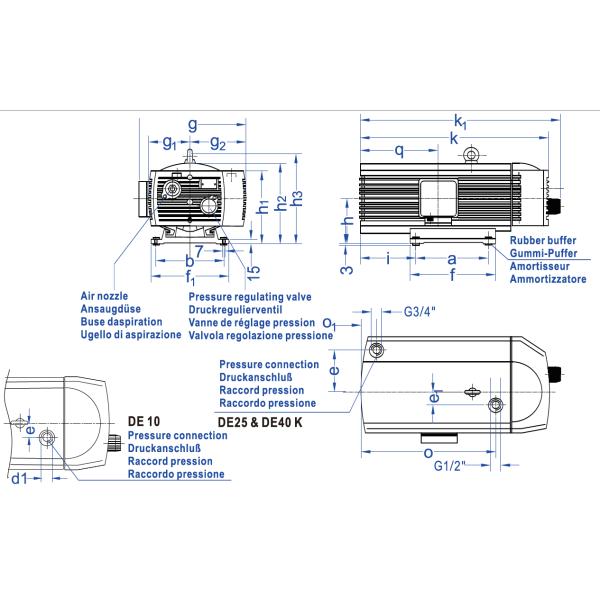

Dimensions


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K


40 m³/h，50/60Hz dry running low pressure compressor,oil-free,air cooled,DE40K




Feedback from clients

https://youtu.be/3ecsqle7bs4




Highlights of DE/KDE series:

  • Low operation and maintenance costs
  • Cool operation
  • Quiet operation-no silence enclosures necessary
  • No cycling times
  • Straightforward construction for fast and easy service on-site to reduce downtime


Applications

  • Refining process with closed loop
  • Beverage industry
  • Protection against cavitation of turbines
  • Flushing arrangement for filters
  • Environment engineering
  • Pneumatic conveying
  • Printing industry
  • Food technology
