45m3/h Mechanical Dry Scroll Vacuum Pump Air Cooled Oil Free Low Noise

45 m³/h Dry Scroll Vacuum Pump IDSP45 , Sky Blue Air cooled Oil-Free

Description

1. Clean operation: They operate without the use of oil or other lubricants in the pumping chamber, which means there is no risk of oil contamination in the vacuum environment. This makes them ideal for applications where cleanliness is crucial, such as in semiconductor manufacturing, pharmaceutical production, and research laboratories.
2. Low maintenance: Since there is no oil to change or oil-related components to maintain, dry scroll vacuum pumps generally require less maintenance than oil - oil-lubricated pumps. This results in lower maintenance costs and less downtime for servicing, increasing the overall productivity of the equipment.
3. Wide operating range: They can operate over a wide range of pressures, from atmospheric pressure down to very low vacuum levels. This makes them suitable for a variety of applications, including both rough vacuum and high-vacuum processes.
4. High pumping speed: Dry scroll vacuum pumps typically have a relatively high pumping speed, which allows them to quickly evacuate gases from a chamber. This is beneficial for applications that require rapid vacuum cycling or high-throughput processing.
5. Quiet operation: The scroll mechanism of these pumps operates with relatively low noise levels compared to some other types of vacuum pumps, such as piston or rotary vane pumps. This makes them more suitable for use in environments where noise is a concern, such as in offices, laboratories, or clean rooms.
6. Compact design: They have a relatively compact and lightweight design, which makes them easy to install and integrate into different systems. Their small footprint allows for efficient use of space, especially in applications where space is limited.

​Technical Data

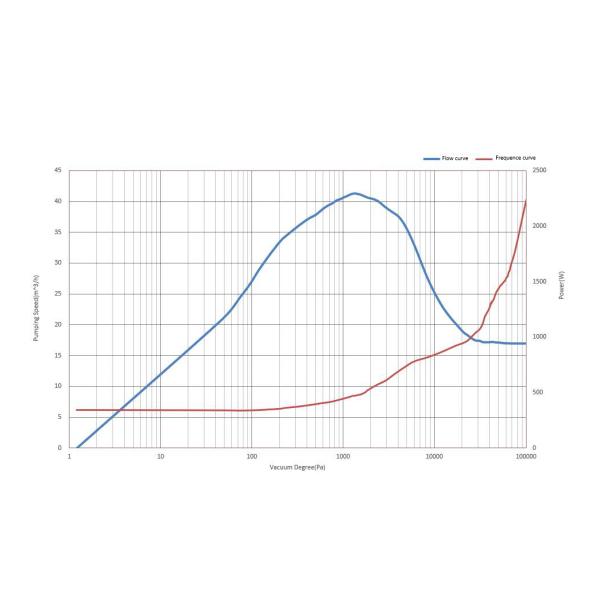

Performance Curve

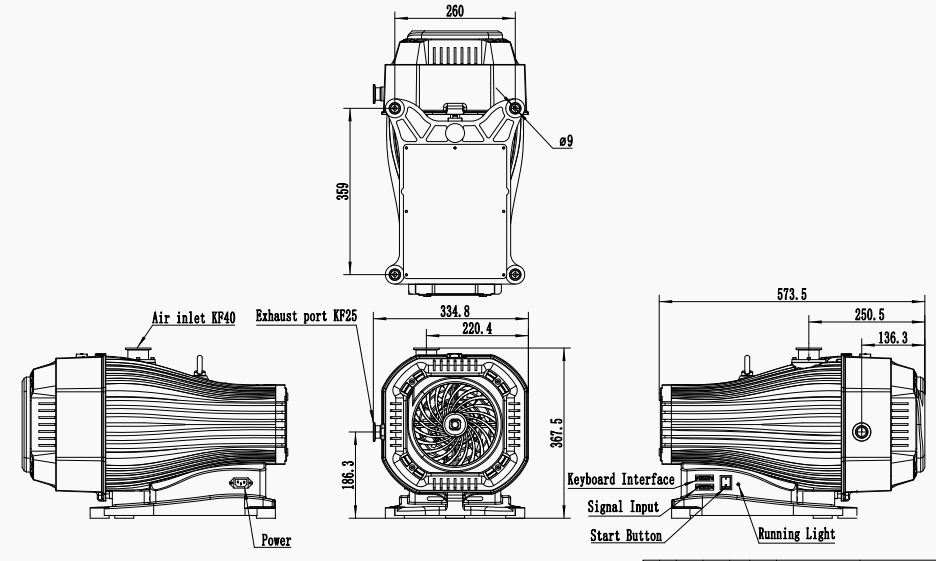

Dimensions

Application

• Electron microscopy
• High energy physics
• Mass spectrometry
• Glove box
• Beam welding/laser welding
• Space simulation
• Coating(PVD/CVD)

https://youtu.be/mFE92Toe_Ps

45m3/h Dry Scroll Vacuum Pump

low Noise Dry Scroll Vacuum Pump

45m3/H oil free scroll pump
