36m3/h Air Cooled Industrial Scroll Pump Oil Free Dry Scroll Pump AL Alloy Material

  • 1
  • 2

Model Number : IDSP36

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : $1800-4300

Supply Ability : 500 sets per month

Delivery Time : 5-30 days

Packaging Details : wooden box

Brand Name : KACO

Payment Terms : T/T

Ultimate Vacuum : 0.01mbar

Color : Blue

Speed : 36 m³/h

Operating Temp. : 10~40℃

Dimensions : 574*335*368mm

Surface : Painting

Weight : 70kg

Material : AL alloy

Contact Now

36 m³/h Vacuum Pump, Sky Blue Oil-Free Dry Scroll Pump IDSP36

Description

Scroll pump is a new kind of oil-free mechanical pump with features of simple construction, good sealing, high vacuum, etc. As a high technology product, it has a highly technical requirements in design and manufacture. With the benefits of low consumption, long working life, high reliability, and low noise, it has the incomparable advantage in the application of clean processes and is popular used in the market. In order to meet the featured application requirements of domestic and overseas customers.

​Technical Data

Model IDSP36
Nominal rotational speed rpm 1800
Displacement m³h-1 36
Motor power W 1100
Ultimate Vacuum mbar 0.01
Voltage input V 1-ph, 100-240
Noise level dB (A) 54
Inlet flange - KF40
Exhaust flange - KF25
Max water vapour pumping rate gh-1 200
Leak tightness mbar ls-1 ＜1×10-6
Weight kg 70
Cooling Method - Air cooled

Performance Curve

36m3/h Air Cooled Industrial Scroll Pump Oil Free Dry Scroll Pump AL Alloy Material

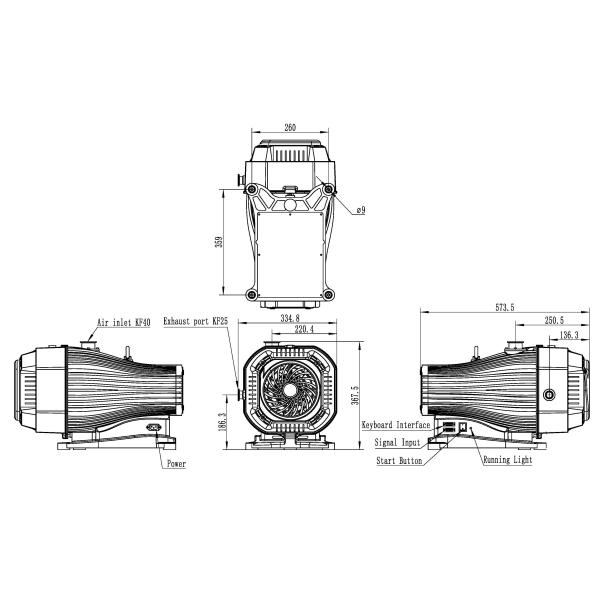

Physical dimension:

36m3/h Air Cooled Industrial Scroll Pump Oil Free Dry Scroll Pump AL Alloy Material

Application

  • Electron microscopy
  • High energy physics
  • Mass spectrometry
  • Glove box
  • Beam welding/laser welding
  • Space simulation
  • Coating(PVD/CVD)

https://youtu.be/mFE92Toe_Ps
